CASE Adds Electro-Hydraulic Controls to F Series Compact Wheel Loaders

The electro-hydraulic controls offer advanced bucket lift and tilt functionality, upgraded inching pedal and bucket metering for customizable machine response and precision control.

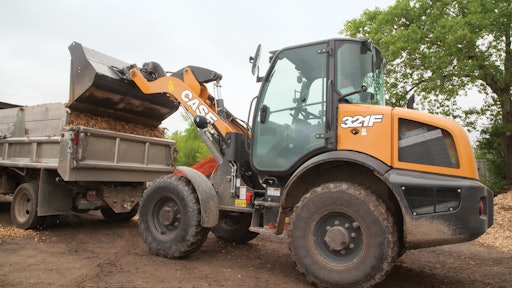

548311
Case Construction Lloydfedders 10948919

CASE Construction Equipment has upgraded its F Series compact wheel loader lineup with new adjustable electro-hydraulic controls. This added functionality allows operators to adjust the responsiveness of the lift and tilt bucket functions for improved control and efficiency on the jobsite.

The company first announced the addition of the electro-hydraulic controls at bauma 2019. Comprised of 20 sensors and 20 electrohydraulic actuators, the technology provides better operator control and combined machine movements.

Lift and tilt settings can now be adjusted with two new 3-way rocker switches (high, medium, low) mounted on the side console, allowing operators to adjust the responsiveness of the loader lift arms independently of the attachment tilt functions. These new programmable settings allow operators to program the machine’s response based on their personal preferences, or to better meet the demands of the job at hand.

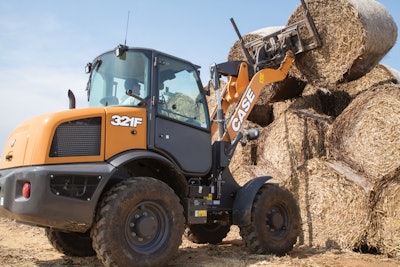

The new electro-hydraulic controls also offer automated bucket metering functionality, providing operators more precise and consistent movement of the bucket edge while metering or sifting material into a truck or feed wagon. 548309

A new E-inching pedal uses an electronically-controlled inching valve to provide greater response and more control in applications where the operator requires precise movements at slow speeds. The pedal has also been ergonomically positioned for improved operator comfort.

CASE F Series Compact Wheel Loaders

CASE Construction Equipment’s F Series compact wheel loaders provide operators with more reach, lift capacity, visibility and comfort compared to other light equipment. The F Series compact wheel loaders feature CASE’s proven maintenance-free Tier 4 Final solution that requires no regeneration or related downtime. A compact frame and articulating rear axle provide stable lifting strength of over 8,300 lbs. at full height.

Basic Operating Specs:

  • 21F: Operating weight: 11,272 lbs. (5,113 kg), Lift Capacity: 5,287 lbs. (2,398 kg)
  • 121F: Operating weight: 11,618 lbs. (5,270 kg), Lift Capacity: 5,265 lbs. (2,388 kg)
  • 221F: Operating weight: 12,547 lbs. (5,691 kg), Lift Capacity: 8,317 lbs. (3,773 kg)
  • 321F: Operating weight: 13,303 lbs. (6,034 kg), Lift Capacity: 8,354 lbs. (3,785 kg)

Available options such as a deluxe cab, air-ride seat, Bluetooth radio and LED lights provide greater operator comfort for all day operation.
