Grayhill CANbus Keypads and MMI Controllers

Grayhill's updated line of CANbus keypads and MMI controllers feature a lower profile than the previous version and are designed to be customized to customer specifications.

Grayhill Lockup Main Horizontal Black + Rgb 199 (1)

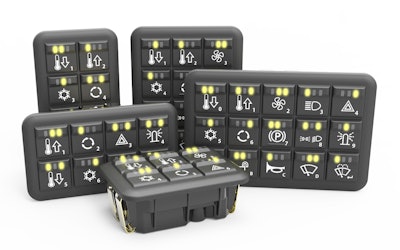

Grayhill Inc. announces the release of a line of updated CANbus keypads and MMI Controllers for off-highway vehicles.

  • Designed especially for agricultural, construction, mining and other large capacity equipment
  • CANbus controls give operators access to greater number of functionalities in smaller footprint
  • Many available standard form factors and three standard legend sets
  • Made to be customized
  • Designers can change legends, backlight LED indicator color, and button configurations
  • Features lower profile that protrudes from panel only about half the distance as original versions
  • Innovative new snap fit feature means keypad and MMI Controllers can be easily snapped into panel cutout with no tools needed for installation
  • New Safety Diagnostic Functions actively report status of Incoming Power and functionality of Buttons/LED indicators
  • Low power sleep mode saves energy, reducing possibility of draining battery
  • LED indicators are now raised above the buttons, giving users much clearer image and excellent off-angle visibility, even when not viewed from optimal viewing angle
  • Integration options expanded by adding input/output (I/O) pins that can be controlled by CANbus interface for door lights, heat sensors, and other analog outputs
  • Five standard keypad form factors available
  • J1939 and CANOpen Safety versions
  • Dimmable LED indicators and legends
  • Sealed to IP67
  • Vibration and impact resistant
  • Operating temperatures of  -40-85 C (-40-185 F)
  • Long life of 1,000,000 cycles per key
  • Support for multiple key press combinations
  • Designed for 12/24V systems
  • Custom legends and configurations available
