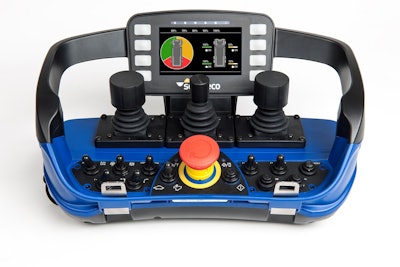

Scanreco Maxi Transmitter

The Scanreco Maxi Transmitter features a large 4.3 in. color display and the option of linear levers or joysticks for operator control.

Scanreco Maxi Transmitter

Maxi Transmitter is Scanreco’s latest transmitter which includes room for many control elements as well as function labeling.

  • Features large 4.3 in. (10.9 cm) high-performance color display
  • Ergonomic housing comes in two basic versions, with linear levers or joysticks
  • Available with one to eight linear levers or one to four joysticks
  • Modular design
  • Offers a bundle of both standard and optional settings and features to improve operator experience
  • Maximum speed of proportional movements can be easily adjusted using “turtle/rabbit” toggle switch in five steps
  • Stop function conforms to performance level “e” (PL e) as specified in EN ISO 13849-1
  • Operator feedback options include color 4.3 in. display with 480 x 272 pixels, monochrome 2.5 in. (6.4 cm) display with 128 x64 pixels and LEDs
  • Frequency bands of 433-434 or 902-928 MHz (other frequencies available on request)
  • Operating range is >100 m (>~330 ft.)
  • Cable control standard length of 10 m (~33 ft.)
  • Operational temperature is -20-70 C (-4-160 F)
  • Protection category of IP65
  • Automatic frequency management allows for continuous operation without any interruptions caused by radio interference from other wireless equipment
  • Communicates with corresponding receiver using protocol and unique identity code, guaranteeing no other Scanreco transmitter, or any other product, can unintentionally activate machine
