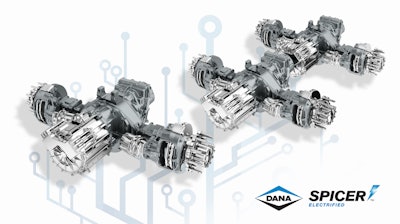

Dana Spicer Electrified Zero-8 e-Axles

The Zero-8 electric axles are designed to meet the multi-faceted electric powertrain options available for the Class 7 and 8 vehicle market.

Dana Zero 8 E Axles
Dana Inc.
Adiam 5 10948696

Dana Incorporated has expanded its Spicer Electrified e-Powertrain offerings to include a family of single and tandem e-Axles designed for a wide variety of Class 7 and 8 applications, the Spicer Electrified Zero-8 e-Axles.

  • Precisely engineered for demanding, over-the-road applications
  • Designed to easily integrate into most existing chassis
  • Utilizes Dana’s vertically integrated and long-standing technologies, including Dana TM4 motors and inverters, Spicer high-efficiency axle gearing, Graziano synchronizers, transmission controllers, system software, and shift system and controls
  • 4x2, 6x2, and 6x4 configurations are compatible with drum or disc brakes, and are available as completely integrated fully dressed assemblies
  • Ranges from 52,000-69,000 Nm (38,353.2-50,891.8 lb.-ft.) of nominal output torque
  • Supports gross axle weight ratings (GAWR) from 21,000-30,000 lbs. (9,525.4-13,607.8 kg) for single e-Axle configurations, and 40,000-52,000 lbs. (18,143.7-23,586.8 kg) for tandem e-Axle propulsion
  • Features modular motor design for easy accessibility for servicing and maintenance
  • Motor interchange capability provides increased ease of scalability in the Class 7 and 8 application range
