Scania Introduces Disengageable Tandem Axle

The new RB662 is a liftable and disengageable tandem bogie axle which enables reduced tire wear as well as a max load transfer for greater traction when unladen.

9c96e548e90a252a Org
Scania AB

Scania introduces the RB662 tandem bogie axle with an optional lift-and-disengage function. The new option, when engaged, can save up to 6% on fuel, depending on operation, and reduces the turning radius. Lifting takes less than 25 seconds and, with normal chassis height and tires, ground clearance is nearly 70 mm.

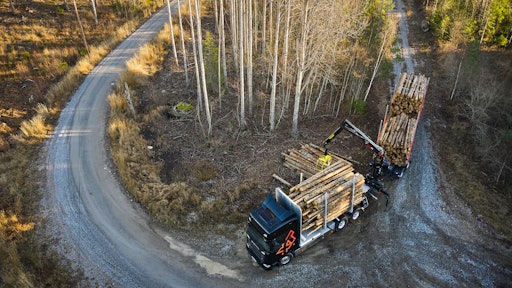

“This is a highly desired function from customers in certain applications, and I’m pleased to announce this very neat solution,” says Bo Eriksson, Product Manager, Scania Trucks. “When unladen, the difference in fuel consumption can be up to 6% depending on the operation. That is substantial, especially when considering a return leg of 150-200 km, as is often the case with timber trucks in Sweden. And, on top of that, you also get less tire wear and increased maneuverability.”

The liftable and disengageable tandem bogie (LDTA) requires air suspension and will increase the trucks kerb weight by 60 kg. Most of the fuel savings can be attributed to the reduced friction inside the second (disconnected) axle gearing and only some 10% of the saving derives from reduced rolling resistance. Three bogie weights – 19, 21 and 26 tonnes – are available and load limits with the second axle lifted are 9.5, 10.5 and 13 tonnes respectively.

8378fdb42ae09cb8 OrgScania AB

A “dog clutch” connection is part of the option that makes Scania’s tandem axle RB662 both liftable and disengageable, thus offering substantial fuel savings, reduced tire wear and much tighter turning radiuses.

The LDTA option can presently not be combined with hub reduction axles or tridem configurations. The driver raises the axle by simply turning a knob. A pop-up warning appears in the instrument cluster if the truck identifies an overload situation, in which case it will not lift the axle. The lifting can be called for at any speed. The disengagement itself is performed via a “dog clutch” connection.

“We definitely expect that this option will be included in many truck specifications,” says Eriksson. “The added cost will rapidly be compensated given the obvious and highly positive contribution to our customers’ total operating economy.”
