Muncie Power Products EX Drive PTO Shaft Extension

Muncie Power Products' EX Drive PTO shaft extension allows for direct mounting of large gear or piston pumps while reducing installation time.

April 15, 2016
Muncie Power Products

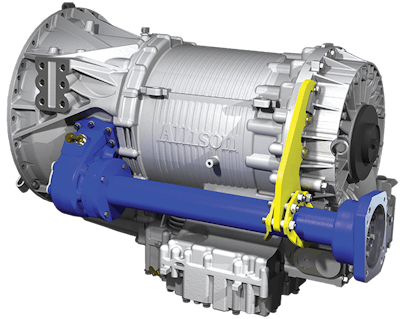

EX Drive Shaft Extension 5711044cc3655
Muncie Powerburst Rgb Logo 3 Inches Wide 59653c3448651

Muncie Power Products Inc. introduces the EX Drive, its latest power take-off shaft extension.

  • Designed to fit Allison 3000 and 4000 Series transmissions with or without a retarder or cooler
  • Replaces the driveline, allowing for direct mounting of large gear or piston pumps while reducing installation time
  • Minimized housing diameter allows for installation in tight spaces
  • Available for both clutch-shift and constant-drive PTOs
  • Wet-spline design virtually eliminates fretting corrosion of pump and PTO shafts
  • Features welded tube housing and clamping bracket, creating flexible design which can be adapted to fit nearly any application
  • Includes four output options for popular pump models (S.A.E. B, BB, C and DIN 5462),
  • Rotatable flange allows the pump to be clocked for optimal positioning
