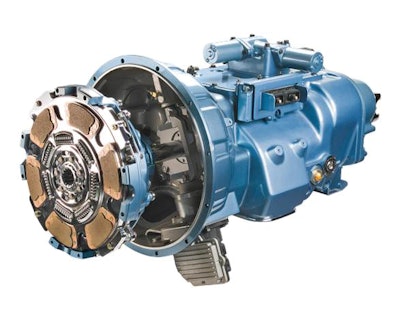

UltraShift PLUS LSE Transmissions

Eaton introduces the UltraShift PLUS LSE line of transmissions designed exclusively for Navistar to increase fuel efficiency in linehaul applications.

Ultrashiftplusstandard 10911470
Logo Eaton 10933210

Eaton introduces a family of UltraShift PLUS LSE (Linehaul Small-Step Efficiency) transmissions designed exclusively for Navistar to maximize fuel efficiency in linehaul applications. The 16-speed direct drive automated mechanical transmissions will be co-released by the two companies.

  • Features small 17% step between gears to optimize time in a diesel engine’s most efficient RPM zone and help reduce fuel consumption
  • Initial testing reports fuel economy improvements from 2 to 4%
  • Direct drive design also boosts efficiency of the transmission gear train to further promote fuel consumption
  • Includes all of the features and benefits of the original UltraShift PLUS transmission
  • Features 16 forward gears and two reverse gears, and an overall ratio of 14.40
  • Uses an electronic clutch actuator to provide faster shifting and smoother engagement
  • Clutch is fully engaged at idle, giving driver ultimate control in challenging situations, like parking lots, loading docks and other tight spaces
  • Features fully automated two-pedal design (no clutch pedal)
  • Safety aspects include auto neutral and Intelligent Hill Start Aid, which prevents roll-back and roll-forward while launching on grades using foundation wheel brakes
  • Automatic, Manual and Low modes offer driver full control
  • Crepe Mode allows the vehicle to be driven at a constant speed (optional)
  • Initial release will be for Navistar MaxxForce 13L SCR engines, followed by Cummins ISX15 engines
