Bushings

Bushings 10058519
Tbwoodsinc 10056677

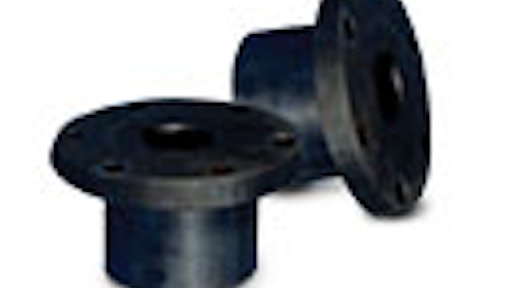

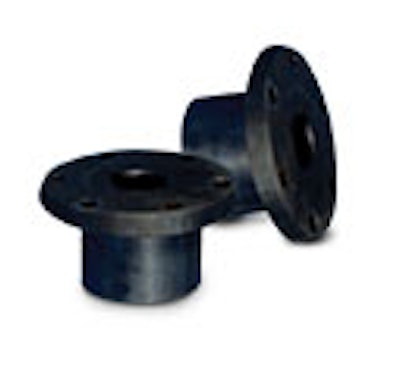

Sure-Grip "Quick Detachable" bushings from TB Woods Inc. are easy to install and remove.

  • Split through flange and taper to provide a true clamp on the shaft equivalent to a shrink fit
  • 6-hole drilling (most sizes) makes installation and removal quick and easy
  • Keyseat 180 degrees from split
  • Precise taper (3/4 in. per ft. on diameter) provides proper wedging action
  • Saw cut through flange and taper (and sometimes cut down into keyway also) to provide a true clamp fit
  • Cap screws used to secure bushings to sheave and to remove bushing from sheave
