ETP Shaft locking bushings from Zero-Max produce accurate and concentric mounting compared to mechanical shaft locking bushings. When the actuation screw is tightened it forces the inner and outer wall of the bushing to expand uniformly against the shaft and hub of the mounted component. The result is concentricity to 0.001 in. T.I.R.
- Incorporate a double walled sleeve encapsulating a pressure medium
- Ideal where repeated mounting and dismantling of components is required
- Consistently accurate and easy to use

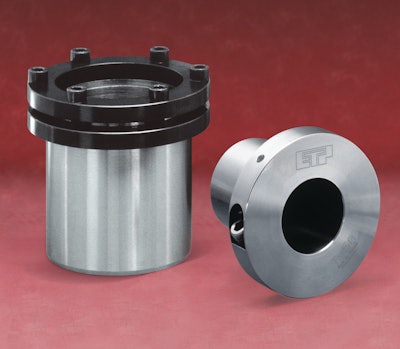

- ETP Classic has flange mounted actuation screws
- ETP Express has just one mounting screw positioned in a radial location. The single actuation screw saves space, time and is easy to access
- Both ETP Classic and Express operate in temperature ranges from -22 to 180 F
- ETP Classic handles torque ranges from 40 to 11,413 ft.-lbs.
- ETP Express handles torque ranges from 40 to 6,400 ft.-lbs.
- Both require no lubrication
- Available in a full range of inch and metric sizes in both standard steel and stainless steel
