HS Series Slewing Ring Bearings

Kaydon Corp., Bearings Div. is now stocking models of its space-saving HS Series slewing ring bearings.

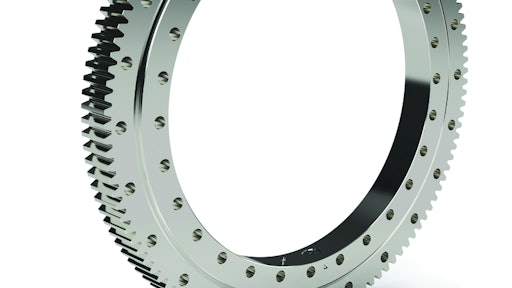

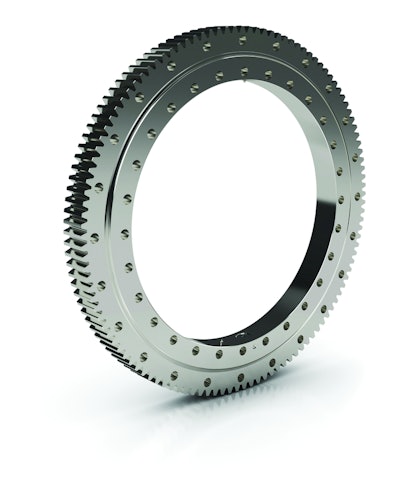

Kaydonhsbearing4x6300dpi 10225717
Kaydon Logo Small

Kaydon Corp., Bearings Div. is now stocking models of its space-saving HS Series slewing ring bearings.

  • Handle moment loads of up to 139,900 ft.-lbs.
  • Ideal for a wide range of medium-duty to heavy-duty applications, such as cranes, aerial lifts, digger derricks, chute swivels and lift truck rotators
  • Designed for four-point contact, with a rectangular cross-section, deep groove gothic arch raceways and maximum ball complement
  • Available in O.D.s from 20 to 47 in. (500 to 1,200 mm)
  • Configurations include internal geared, external geared and non-geared
  • Involute Stub designs with 20 degree pressure angles
  • Manufactured to AGMA Class Q5
  • All HS models feature two fittings for lubrication and integral seals┬áto protect against contamination
  • Geared races have tapped holes, while non-geared races have through holes
