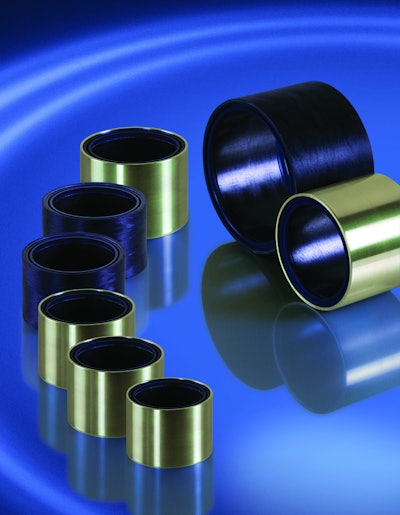

Sealed Bearing Cartridges

GGB Bearing Technology offers sealed bearing cartridges as a cost-effective alternative to conventional greased bronze, hardened steel and rolling-element bearings in off-highway applications.

• Self-lubricating bearing cartridges
• Handles loads up to 90,000 lb.-ft./in² (620 Mpa)
• Integral lip seals exclude contaminants
• Zinc-plated steel outer shell protects from compressive loads
• Compared with a greased steel bearing, saves more than $500 per bearing over five years
• Available with GGB's GAR-MAX or High-Strength GAR-MAX (HSG) filament-wound plain bearings
• Standard dimensions to accommodate shaft diameters of 1 to 4 in. (25 to 100 mm) and housing bores from 1.75 to 4.875 in. (41 to 122 mm)
• Non-standard also available
