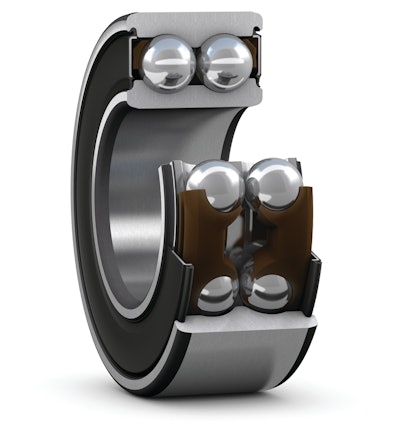

CE Double Row Angular Contact Ball Bearing

SKF introduces its CE double row angular contact ball bearings featuring low friction and low noise glass fiber reinforced polyamide cages.

Skf Ce Double Row Angular Cont 11233614

SKF has announced that it has developed the CE double row angular contact ball bearing which is suitable in trucks and agricultural applications - where a reliable and robust performance is essential.

  • Available in the 32 and 33 Series in the range from 20 to 50 mm bore diameter
  • Offers customers a cost-effective solution for application specific requirements
  • Features low friction and low noise glass fiber reinforced polyamide cages as standard
  • Optionally available with stamped steel cages
  • Available open or capped with either seals or shields
  • Both versions are dimensionally interchangeable and have the same high load carrying capability
  • Sealed version has steel reinforced Nitrile Butadiene Rubber(NBR) seals that exert a light contact pressure with the bearing inner ring for effective retention of the lubricant and exclusion of contaminants
  • Sealed bearings have lower limiting speed than open or shielded bearings owing to the additional seal friction
  • Shielded version has sheet steel shields that extend into a recess in the bearing inner ring for good grease retention and reduction of contaminant ingress
  • Shielded bearing has same limiting speed rating as the open bearings
  • Both filled with a high performance polyurea (GXN) grease as standard
  • Available in Normal (CN) axial clearance class
  • Sealed and shielded bearings are available with greater than Normal (C3) clearance class
