3D drawings

Thomson has 3D models for many of its bearing products.

March 26, 2009
Thomson Industries Inc.
3ddrawings 10057923
Logo 10933216

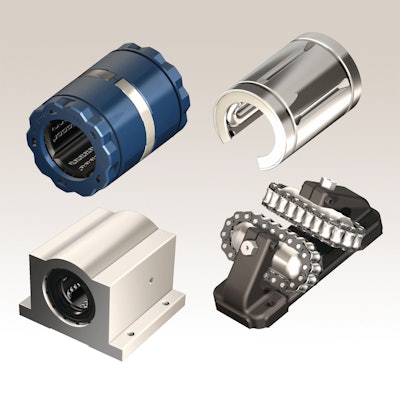

Thomson has available 3D models for its popular Thomson Linear Ball Bushing bearing and linear specialty bearing products.
• Configurable 3D CAD models for immediate download
• Available in more than 25 file formats
• Compatible with popular CAD programs, including Solidworks, AutoCAD, Pro/E

Request More Information
Fill out the form below to request more information about 3D drawings
