Universal Mounting Kit for Shaft Grounding Ring

Universal kit from Electro Static Technology facilitates installation of AEGIS shaft grounding ring on virtually any motor.

10414ukit 10224100

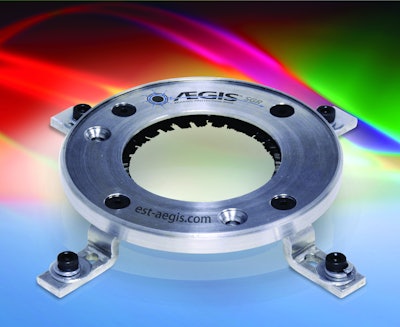

The AEGIS SGR Bearing Protection Ring protects the bearings of VFD-driven motors from electrical damage, and the all-inclusive AEGIS Universal Mounting Kit (U-Kit) available from Electro Static Technology simplifies its mounting on virtually any AC motor shaft.

  • Kit includes AEGIS grounding ring and mounting hardware for most motor designs
  • Ordered based on the NEMA "u" shaft diameter
  • Kit contains the correct size ring for the motor and four styles of brackets with bolts and lock washers that can be used in various configurations, depending on the contours of the motor's end bracket
  • Ring prevents electrical "fluting" damage in the bearing, bearing noise, costly motor repairs/replacements, and downtime by safely channeling VFD-induced bearing currents to ground
  • To simplify installation of the ring on NEMA frame motors, the brackets in the U-Kit may be mounted on the motor either by drilling and tapping small holes or using AEGIS Conductive Epoxy
  • Ring's conductive microfibers are embedded securely in the patented AEGIS FiberLock channel and completely surround the motor shaft, providing millions of discharge points for harmful shaft currents
  • Design creates the path of least resistance that effectively diverts these currents away from bearings to ground
  • Maintenance-free; lasts for the life of the motor
