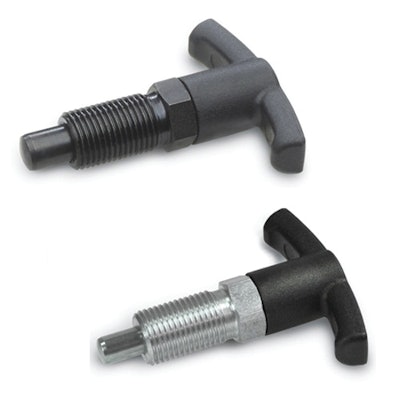

Series GN 817.4 Steel or Stainless Steel Indexing Plungers with T-Handle

J.W. Winco is now offering Series GN 817.4 Steel or Stainless Steel Indexing Plungers with T-Handles.

Jwwinco Indexingplungerwiththa 10758814
Winco Logo 2016 4c Large

J.W. Winco, Inc. announces it now offers Series GN 817.4 Steel or Stainless Steel Indexing Plungers with T-Handle, with and without Rest Position, in metric sizes.

  • RoHS compliant
  • T-handle shape is advantageous when greater unlocking forces occur
  • Handle shape allows better visual orientation of indexing position of Type C version (version with rest position)
  • Type C plungers are used in applications where plunger must not protrude continually
  • For non-protruding applications, the knob is retracted and afterwards turned by 90 degrees and a notch keeps the plunger in this position
  • In steel version, body and plunger pin are steel with black oxide finish
  • Stainless steel version eatures European Standard No. 1.4305 stainless steel (American Standard Series 303) body and plunger pin, with plunger pin also chemically nickel-plated
  • T-handle is technopolymer plastic (Polyamid PA), and not removable
  • Lock nut is steel or stainless steel, ISO 8675 (DIN 439)
