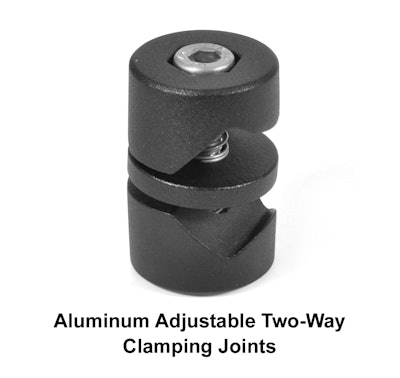

J.W. Winco GN 490 Aluminum Adjustable Two-Way Clamping Joints

The J.W. Winco GN 490 Aluminum Adjustable Two-Way Clamping Joints feature a pressure spring for easier clamping and release.

November 2, 2015

JW Winco, Inc., A Ganter Company

JWWinco GN490TwoWayClampingJoints 56377a0e00f7f

J.W. Winco Inc. announces it now offers GN 490 Aluminum Adjustable Two-Way Clamping Joints, in metric sizes.

RoHS compliant
Clamps rods or tubes via a V-groove
Allows greater tolerance to be bridged
Pressure spring makes clamping and releasing easier
Available with socket head cap screw or with adjustable lever
Clamp mounting is made of aluminum, in either a plain, matte tumbled finish or a black powder coated, textured finish
Socket cap screws are DIN 912 and hexagon nuts are DIN 934 and made of AISI 304 stainless steel
GN 300.1 adjustable lever has a zinc die-cast handle with a silver powder coated, textured finish
Insert and screw are AISI 303 stainless steel; spring is AISI 301 stainless steel; spacer bushing is AISI 303 stainless steel

Fill out the form below to request more information about J.W. Winco GN 490 Aluminum Adjustable Two-Way Clamping Joints
