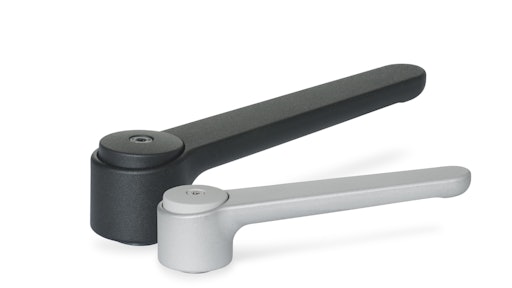

JW Winco Inc., A Ganter Company now offers GN 126 and GN 126.1 Zinc Die-Cast Flat Adjustable Tension Levers in Steel and Stainless Steel, with Tapped or Plain Bore Insert or Threaded Stud.
- RoHS compliant
- Characterized by low height and elegant style
- Designed for whenever swiveling in a confined space is required or lever is to be clamped in a particular position, the insert or threaded stud is moveably attached to the handle with serrations
- Pulling lever disengages serrations, allowing it to be swiveled to desired clamping position
- On “releasing” the handle, serrations re-engage automatically via a spring
- Handle is zinc die-cast, powder coated in either black or silver textured finish
- Hub cover is either black or light gray
- Countersunk screw is either steel or stainless steel, and either chemically blackened or has plain finish depending on material type
- Steel insert or threaded stud has blackened finish, while stainless version is European Standard No. 1.4305 (AISI 303)
