Stafford Machinable Shaft End Adapters

Stafford's machinable shaft end adapters come in three configurations where the female clamps onto the shaft end.

June 2, 2020
Stafford Manufacturing Corp.
Stafford

Stafford Manufacturing Corp. introduces its Machinable Shaft-End Adapters which can be customized to solve a virtually unlimited range of shaft compatibility and component mounting issues in machinery, materials handling, and packaging systems.

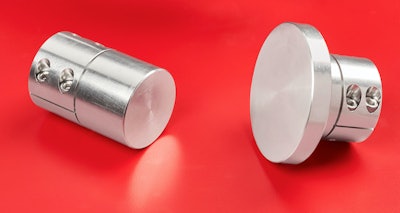

  • Come in three configurations where the female clamps onto the shaft end: one has a machinable male, one has a full diameter customizable end, and another has a flange style end
  • Offered in aluminum, steel, and stainless steel to accommodate shafts from 0.5-2.0 in. (1.3-5.1 cm) I.D. and provide a range of inch and metric output ends
  • Can be modified by Stafford or customized by customer
  • Can be provided with steps up and down sizes, various threads, custom bolt-hole patterns, indexers, cam profiles, milled slots, knurls, and more
  • Female clamping options can include plain bores or keyways for greater torsional holding power

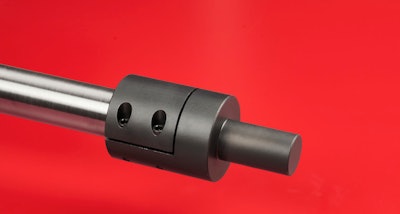

Stafford2
