Diaphragm Seals for Pressure Instruments

Ashcroft's diaphragm seals for pressure instruments help protect components from harsh or corrosive liquids and gases.

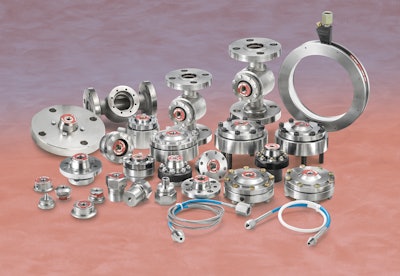

Ashcroft Sealfamily Rev12 04 11178357
Ashcroftinc 10055032

Ashcroft diaphragm seals and other isolation devices can be mated to pressure instruments for complete media protection.

  • Protects against harsh or corrosive process liquids and gases
  • Works with measuring devices such as dial gauges, switches, digital gauges or transmitters
  • Available in a wide variety of sizes and wetted materials
  • Configurations offerings include capsule type, welded or bonded and clamped designs with threaded, flanged and flushing connections
  • Pre-assembled, filled and ready for installation
  • Provides right combination of measurement performance and media protection in any demanding severe-service application
