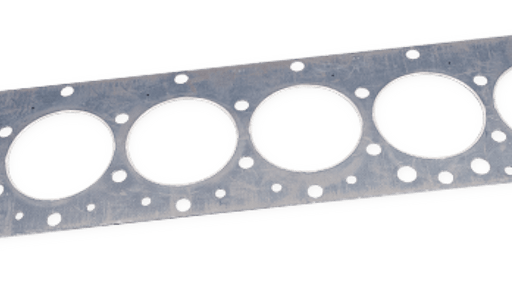

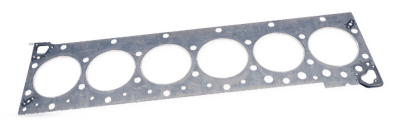

Victocor 500 Cylinder-Head Gaskets

At CONEXPO 2014, Dana introduced its next-generation Victocor 500 cylinder-head gaskets featuring multi-layer steel inserts.

Dana Victocor500 11329359
Adiam 5 10948696

Dana Holding Corporation has introduced its next-generation Victocor 500 cylinder-head gaskets, designed to help heavy-duty engines achieve extreme durability, high-stress and pressure requirements for over-the-road hauling.

  • Features multi-layer steel (MLS) inserts
  • Utilizes high-grade rubber-coated stainless steel in place of traditional rubber inserts to provide optimal sealing performance at oil and coolant passages, as well as pushrod openings
  • Delivers increased strength throughout the entire gasket, minimizing oil leaks and maintenance, and provides consistent performance
  • Incorporates steel core that is three times thicker than conventional head gaskets to enhance stability and provide superior radial strength of combustion seals
  • MLS inserts are available in three to five layers specifically matched to the engine load distribution and dynamics to optimize sealing
  • Provides improved longevity, as well as long-term recovery over time, resulting in less maintenance due to oil leak avoidance
  • MLS layers maintain stability over an operating temperate range of -40 to 450 F
  • Stainless steel layers also include mechanical embossments designed to cope with specific engine dynamics
  • Available in thicknesses ranging from .049 in. (1.25 mm) to .083 in. (2.05 mm) with tolerances of +/- .003 in. (0.08 mm)
