DESCH Revox Drive Concept

The Revox drive concept from DESCH includes a power-split drivetrain and hydraulic motor.

Desch Logo 2016 Rgb (003)

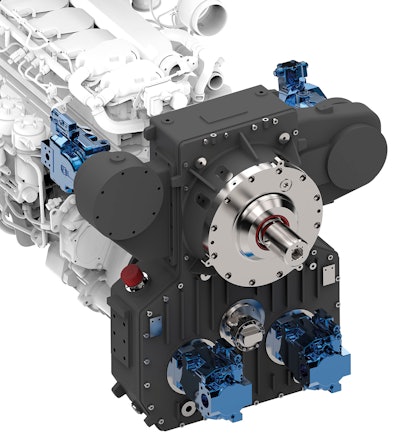

The DESCH Revox drive concept, a clutched hybrid drive unit, combines an energy-efficient gear drive with the versatility of hydraulic drive.

  • Core of system is a power-split drivetrain
  • Mounted hydraulic motor takes care of start-up process to ensure safe and gentle acceleration of crusher rotor
  • Eliminates clutch wear and need for highly sensitive electronic control systems
  • Robust wet clutch transmits engine torque through efficient gear reduction for energy-savings during normal operating mode
  • Provides two pump drive connections that transmit power as soon as engine is started
  • Default hydraulic pump connection is for an SAE-C pump, but other connections are possible
  • Optional reverse drive makes it possible to operate machines in reverse with full cutting torque, helpful for removing blockages
