ZF eTRAC Electric Drive System for Wheeled Excavators

The ZF eTRAC electric drive system consists of a 2-speed powershift transmission, electric motor and inverter.

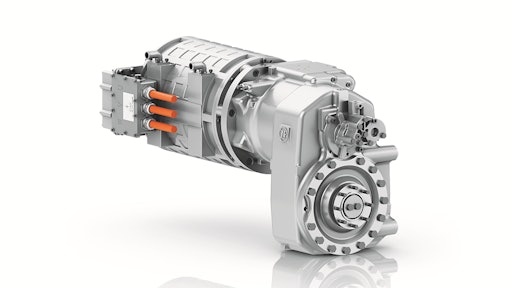

The eTRAC eCD70 central drive system.
The eTRAC eCD70 central drive system.
ZF Friedrichshafen AG
Zf Logo 660 4a Tx4a7lu Qu

The ZF eTRAC electric drive system for wheeled excavators provides a 100% electric, zero emissions solution for OEMs.

  • Modular kit for various applications and vehicle sizes
  • Consists of a 2-speed powershift transmission, electric motor and inverter
  • Can be scaled up to peak torque 850 Nm (626.9 ft.-lb.) and continuous power of 80 kW (107.3 hp)
  • Three systems of the electric central drive system eCD50, eCD70 and eCD90 are available to cover different vehicle sizes
  • Total weight of 255 kg (562.2 lbs.)
  • Voltage 650V DC
  • SAHR parking brake included
  • Axle disconnection is optional (2WD/4WD)
  • Satisfies all expectations for performance and productivity found in traditional drivelines
  • Modular design can easily be adapted for various vehicle applications like backhoe loaders, telehandler, forestry equipment, etc. as well
  • Provides low noise level
  • Efficient electrical components
  • Robust and reliable mechanical driveline
  • Compact installation space

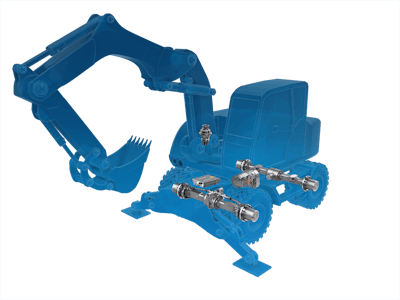

The new ZF eTRAC drive system electrifies wheeled excavators to provide emissions-free operation.The new ZF eTRAC drive system electrifies wheeled excavators to provide emissions-free operation.ZF Friedrichshafen AG
