Carling Technologies Expands Hydraulic-Magnetic Circuit Protection Lineup

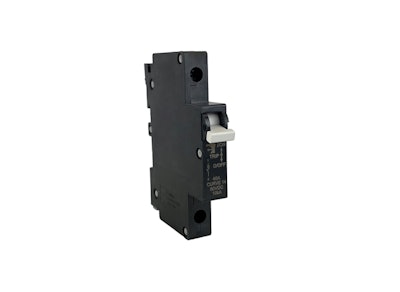

The R-Series DIN Rail Mount Circuit Breaker combines maximum protection with ease of use.

Screenshot 2023 09 11 141122
Carling Technologies

Carling Technologies, a Littelfuse, Inc. brand, has announced the introduction of the new R-Series configurable 13 mm DIN rail mount hydraulic-magnetic circuit breaker. Available with up to four poles, the R-Series circuit breaker features no hardware or front panel cutout requirements, an optional rail button, and a choice of 45 mm or 57 mm mounting panels, making DIN rail mounting simple.

According to Gary Chan, global product manager, datacom and telecom applications and renewable energy projects require a lot of equipment in increasingly smaller spaces, and customers are looking for ways to fit more equipment in without sacrificing circuit protection and safety.

The R-Series circuit breaker features a narrow design, which frees up valuable real estate for revenue-generating devices, and it has recessed wire-ready terminals that are touch-proof and shock-resistant.

The R-Series hydraulic-magnetic circuit breaker is available with:

  • One to four poles
  • Voltage ratings of 80 VDC, 240 VAC, 415 VAC, or 480 VAC
  • Current ratings of 1 to 200 A
  • 45 mm or 57 mm mounting panels
  • Optional rail button

Designed in accordance with the requirements of specifications MIL-PRF-55629 and MIL-STD-202, the R-Series withstands up to 100 Gs and has an operating temperature of -40 ºC to +85 ºC. In addition, the configurable circuit breaker is available with or without various agency approvals, including UL 489A, UL 1077, CSA 22.2 No. 235, TUV IEC/EN 60947-2, and CCC GB14048.2.

In addition, the configurable circuit breaker is available with or without various agency approvals, including UL 489A, UL 1077, CSA 22.2 No. 235, TUV IEC/EN 60947-2, and CCC GB14048.2.
