Quick Connect Series

June 30, 2009
Deutsch Industrial Connectors

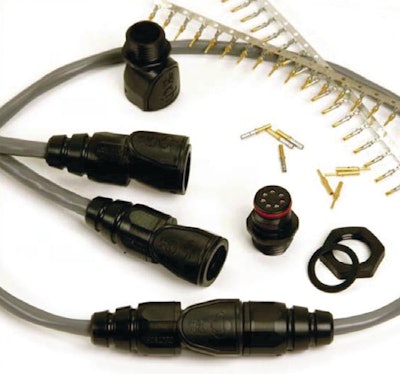

Quickconnectseries 10058324
Te Connectivity Logo 10933221

Deutsch Industrial releases the Deutsch European Quick Connect Series.

  • Compact, high pin density connectors
  • Available in 2, 7 and 12 pin arrangements
  • Wire gauge ranges from 16 to 26 awg
  • Mate with a unique push-button thumb latch, providing a fail-safe way to ensure proper and complete mating
  • All plugs and receptacles can be panel nut or flange mounted
  • Meets ABYC specification E-11
  • IP68 rated
Request More Information
Fill out the form below to request more information about Quick Connect Series
