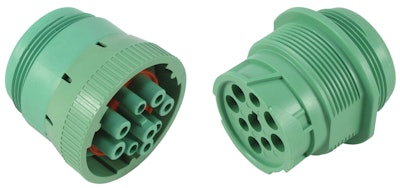

HD10 Series J1939/13 Type II Diagnostic Connectors

Deutsch Industrial's HD10 Series diagnostic connectors are designed to meet the J1939/13 on-board diagnostic standard.

May 17, 2012
Deutsch Industrial Connectors
Deutschhd10seriesj193913typeii 10716141
Te Connectivity Logo 10933221

LADD Industries Inc. announces the addition of the HD10 Series J1939/13 Type II connectors to the Deutsch Industrial product line.

  • Environmentally sealed and well suited for CAN applications where moisture, dirt and vibration can contaminate or damage electrical connections
  • Compact, nine-pin cylindrical design
  • For use in on-board diagnostic applications and meets the 2013 J1939/13 standard
  • Allows for the transfer of 500 kilobits per second of data
  • Backwards compatible with 250kbps network Deutsch HD10 receptacles
  • Accepts size 16 contacts
  • Available with several different mounting options to meet application specific needs and enhance design flexibility
