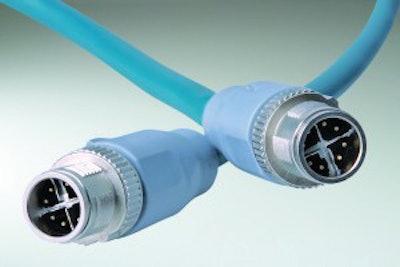

M12x1 X-Code Connectors

CONEC's M12x1 X-code connectors are designed to connect various networks within a single system.

Conec 098m12x1xcodeconnector 10911618

CONEC has developed the rugged M12x1 X-code connectors for industrial communications applications. Part of the Sensor Actor Line, the M12x1 X-code connectors are designed for integration within modern automation solutions where universal communication is necessary for connecting a number of different networks within a single system.

  • Combines reliable high-speed data transmission with rugged connector construction
  • For transmission technology to CAT6A and 500 MHz/10 gigabit speeds
  • Features four shielded pairs within the small M12 connector frame
  • Built to IEC 61076-2-109 standards
  • Comes in standard cable lengths of 1, 2, 5, and 10 m, and an additional female socket option with PC tails for panel mounting
  • Made from industrial-grade materials
  • Features machined contacts
