RJ45 Series Connectors with Flange-Mount

CONEC introduces the RJ45 Series connector with a flange-mount to provide extra protection from contaminants in harsh operating conditions.

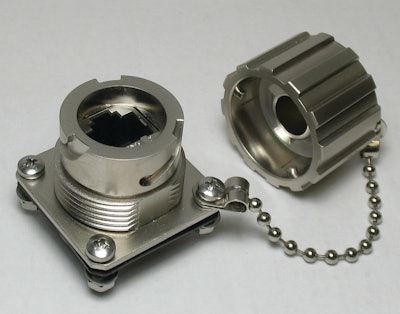

Conec Flangerj45ip67connector 10911692

CONEC has advanced its RJ45 Series of water-resistant connectors to include Ethernet I/O ports with a special flange-mount.

  • Die-cast, nickel-plated construction with IP67-rating
  • Allows incorporation of popular data ports in applications exposed to harsh environmental conditions
  • Available in Cat5e or Cat6e configurations
  • Provides increased protection from contamination and moisture in addition to mechanical stability, temperature resistance, vibration immunity and EMI/RFI shielding
  • Offers robust solution to extreme weather conditions or hazards of factory processes
  • Fully compatible with standard cables and interconnect products
  • Can be front or rear-mounted to a maximum panel thickness of 3.20 mm
  • Operates within a temperature range of -40 to 85 C
  • Features a one-sixth turn bayonet coupling for fast and secure mating/un-mating, even with gloved hands
  • Gold-plated contacts ensure high performance efficiency and a long operational lifespan
  • Guarantees continuously secure dust-proof and weather-proof connection, with a silicone ring seal that creates a watertight connection to the panel
