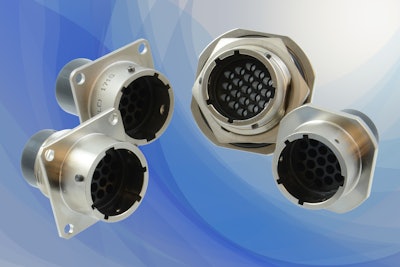

Amphenol LPT Series Rugged Connectors

Amphenol's LPT Series of connectors feature quick positive coupling and five key/keyway mating to ensure there is no mismating when plugging into a receptacle.

Amphenol
Amphenol Industrial

Amphenol Industrial Operations now offers a series of rugged connectors for use in harsh environments, the LPT (Lean PT) Series.

  • Suited for use in factory automation, automotive, hybrid electric vehicles/electric vehicles, energy storage, power distribution, industrial instrumentation and process control applications
  • Aluminum shell design
  • Standard PT Series shell with coupling nut makes it intermateable with PT Series
  • Three retention tines with stamped and formed crimp contacts  that can easily be inserted and ensure retention force
  • Accepts wire gauges from 22 AWG/34 mm2 to 12 AWG/3.5 mm
  • Waterproof to IP67 rating(mating)
  • Self-extinguishing to UL94 V-0 rating
  • Withstands 500 mating cycles
  • Operating temperature range of -40-125 C (-40-257 F)
  • Features quick positive coupling and five key/keyway mating to ensure users don’t mismate when plugging into a receptacle
  • Available in five shell styles, including box mounting receptacle, jam nut receptacle, straight plug, wall mounting receptacle and cable connecting receptacle
  • Variety of finishes, including black zinc, nickel and gray zinc nickel
  • RoHS compliant
  • Contacts are available in gold, nickel or tin plated
  • Multiple shell plating options are available upon request
