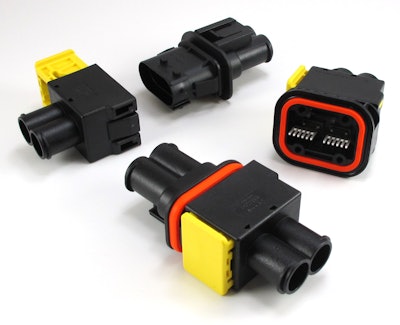

TE Connectivity High-Power AMP MCP 9.5 Two-Position Connectors

TE Connectivity's AMP MCP 9.5 two-position connectors are designed to avoid misorientation as there is just one clear direction to insert the connector to achieve polarization.

Te Amp Mcp 9 5 1436x1167
Te Logo

TE Connectivity (TE) introduces its high-power AMP MCP 9.5 two-position connectors designed for harsh environment wire-to-wire and wire-to-circuit board connections.

  • Withstands extreme conditions of the trucking, agricultural, mining, construction and marine industries
  • Utilizes TE’s field-proven AMP MCP 9.5 contacts
  • Current rating of 78 amps for 10 mm2 wire
  • Constructed of heavy-duty thermoplastic and withstand severe vibration and mechanical shock
  • IP67 and IP69K rated (with backshell), protecting connections from dust, dirt and moisture
  • Operating temperature of -30-100 C (-22-212 F)
  • Several mounting options are available, including inline, flange, sealed flange and PCB mount
  • No tools are required for mounting, as connectors feature clip-in mounting feature
  • Slide lock is used for easy connector mating
  • Features integrated secondary lock that confirms contact alignment and retention
  • Designed to avoid misorientation as there is just one clear direction to insert the connector to achieve polarization
