Amphenol ePower-Lite Connectors

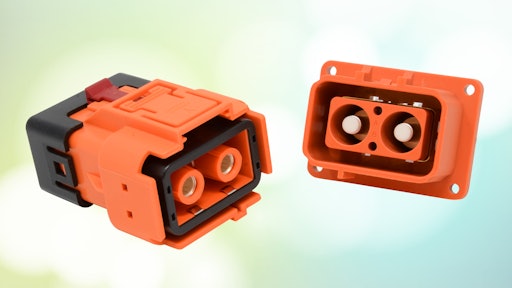

The ePower-Lite 5.7 mm connectors are rated to 120 A of continuous current.

Apl A 5318 E Power Lite 5 7mm R
Amphenol
Amphenol Industrial

Amphenol Industrial Operations now offers a medium amperage connection system that is rated up to 120 A of continuous current, the ePower-Lite 5.7 mm.

  • Operating voltage of 600V AC/800V DC
  • Connects PTC/AC to DC and related control boxes, including power distribution units (PDU)
  • Features HVIL and EMI shielding for safety and performance
  • 2-pole design
  • For use in electric vehicles, hybrid and pure EV heavy equipment
  • Features lightweight plastic shell and compact design to provide both weight and space savings in vehicle architecture
  • Meets demanding needs of medium amperage applications
  • Incorporates 5.7 mm (0.2 in.) terminals with Amphenol’s patented R4 RADSOK technology to achieve higher current ratings, lower insertion forces and lower temperature rise and contact resistance
  • Low insertion force eliminates need for mechanical assist
  • Touch-proof connectors are RoHS compliant
  • Straight version plug for easy mating
  • Keyway design prevents incorrect mating
  • Can be mated a minimum of 100 times
  • Includes UL 94V-0 flammability rating, and IP67 rating when mated
  • Operating temperature range from -40-125 C (-40-257 F)
