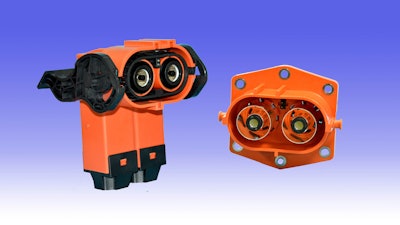

Amphenol UPC 14mm Plastic Universal Power Connector

The UPC 14mm provides continuous power at 500A and is suited for use in heavy equipment and electric vehicles.

Apl A 5272 Upc 450 300dpi
Amphenol Industrial Products Group
Amphenol Industrial

Amphenol Industrial Operations offers a plastic Universal Power Connector (UPC) series, called the UPC 14mm, that is designed to be used in heavy equipment and electric vehicles.

  • Applicable for use in battery connection, power distribution units, electric motors, power converters/inverters, hybrid vehicles, battery management systems, as well as in heavy equipment electrification and starter generators
  • Provides continuous power at 500A
  • Two-pole design
  • EMI shielding, HVIL (high voltage interlock loop) and a second quick lock function for high voltage and current connections
  • Features Amphenol’s patented RADSOK technology for higher amperage, low voltage drop, less resistance and lower T-rise
  • RADSOK twisted grid configuration allows for up to 50% more current to pass through the same size pin while providing increased reliability, cycle durability and lower mating forces
  • Includes quick lock and release function
  • Keyway design prevents  incorrect mating
  • Meets IP67 rating when mated
  • Withstands a minimum of 100 mating cycles
