TE Connectivity HC-STAK 25 High Voltage Interconnection System

The HC-STAK 25 HV interconnection system is designed to efficiently carry power from the battery pack to the drive motors in hybrid and electric vehicles.

March 10, 2021
TE Connectivity - Industrial & Commercial Transportation business unit
Hero Product Master
TE Connectivity
Te Logo

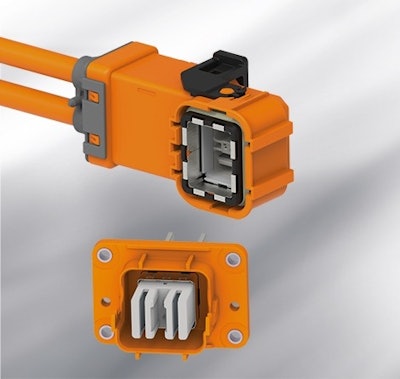

TE Connectivity has developed the HC-STAK 25 High Voltage (HV) Interconnection System, a compact, robust and reliable high-performance connector solution.

  • Efficiently carries power from the battery pack to the drive motors in hybrid and electric vehicles
  • Handles high power surges during swift acceleration throughout the lifetime of the vehicle
  • Provides compact and flexible packaging geometry, weight and cost
  • Double-ended fork contacts
  • Scalable and capable of reliable high-power distribution to each aggregate throughout the lifetime of the vehicle
  • Pre-assembled plug
  • Compatible with aluminum and copper for ease of use
  • Meets touch-proof safety requirements in accordance with IP2XB, IP67/IP6K9K sealing and V0 flammability
  • Designed for vehicle and system manufacturers in automotive as well as industrial and commercial transportation
