TE Connectivity HVA HD400 High Voltage Accessories Connector

The HVA HD400 has a versatile connectivity system designed for use in applications such as HVAC, heaters, hydraulic pumps and electronic power steering.

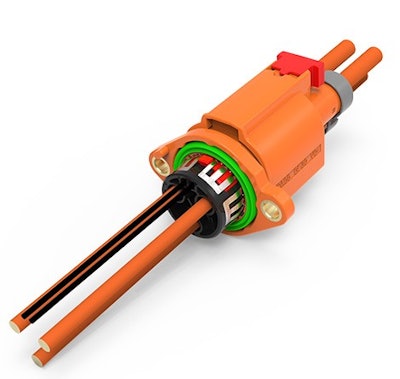

Hva Hd 470x445
TE Connectivity
Te Logo

TE Connectivity introduces the HVA HD400 high voltage accessories connector for high-voltage accessory applications virtually anywhere within the vehicle.

  • Versatile connectivity system designed for use in applications such as HVAC (heating, ventilation and air conditioning), heaters, hydraulic pumps and electronic power steering
  • Compact and adaptable design allows for either two or three conductors in the same interface, handling 2.5, 4 and 6 mm(0.004, 0.006 and 0.009 in.2)  LV216 conductor cross-sections single-core cabling (multi-code and ISO cabling are in development)
  • Performs reliably in extreme environments and can handle up to 1,000V DC and 60 A at 80 C (176 F)
  • Operating temperature of -40-140 C (-40-284 F)
  • Dust and water ingress protection rating of IP68 and IP6K9K
  • Features contact position assurance (CPA)
  • Withstands transmission-level vibrations
