HWB60 Sealed Power Distribution Module

Cole Hersee introduces its HWB60 sealed power distribution module, designed to accept plug-in circuit protection components with a 280 style footprint.

00hwb60aa 10687934

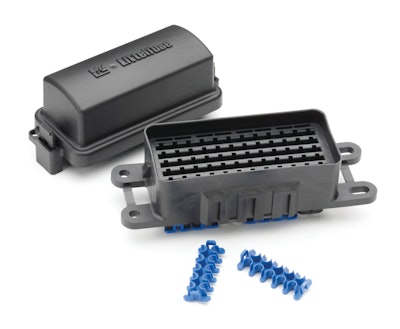

The HWB60 sealed power distribution module from Cole Hersee is a compact hard-wired PDM for 280 style components.

  • Accepts any combination of mini-fuses, relays, circuit breakers, diodes, Delphi Metri-Pack 280 terminals, cable seals and cavity plugs
  • Features a compact, sealed design, measuring 113 x 52 x 82 mm (4.6 x 2.0 x 3.2 in.)
  • Elimination of internal bussing allows user to customize own circuitry with direct wire-to-component connections
  • Well suited for accessory circuits, overflow circuits from main PDM, or as a main module on smaller vehicles
  • IP67 sealing
  • Stands up to roadsplash and salt spray, and gives robust protection to devices
  • Can be installed virtually anywhere on vehicle
  • TPAs (terminal position assurance locks) give secondary locking protection of wire leads, which helps prevent leads from being pulled out
  • Modular design allows multiple units to be dovetailed together to expand circuit protection capacity
