HydraForce ECDR-0506A Electronic Valve Driver

HydraForce's ECDR-0506a electronic valve driver includes a CAN 2.0B communication interface capable of reading CANOpen and SAE J1939 protocols, and is on display at bauma 2016.

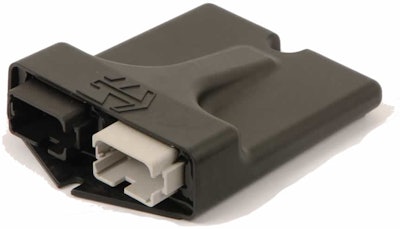

ECDR 0506 3 4 view 570bcb9249e3c
Hydraforcenewtagline 10277017

HydraForce has expanded its range of electrohydraulic controls with the addition of the configurable ECDR-0506A electronic valve driver.

  • Can be used to enhance control of hydraulic proportional valves used for transmission control, vehicle traction control, joystick control and mobile equipment work functions, such as lifting, lowering and rotating
  • Features 32-bit processor and six inputs capable of various signal types, four analog and two digital
  • Includes five outputs, four closed loop and one open loop
  • Voltage rating of 8-32V DC handles range from battery to full voltage
  • CAN-capable with CAN 2.0B communication interface which can read CANOpen and SAE J1939 communication protocols
  • Bi-color LED, red and green, provides a quick status check for troubleshooting
  • Fully configurable using HF-Impulse configuration software, developed specifically for proportional valve control by HydraForce
  • Provides additional level of configuration capability compared to other proportional valve drivers
  • Flexibility allows easy configuration for use in specialized applications, such as fan drives and transmission controls
  • Features robust, compact and fully sealed housing providing environmental protection from moisture and contamination
  • Deutsch connectors qualify for the highest IP69K environmental rating
  • Operating temperature range is -40-85 C (-40-185 F)
