TE Connectivity AMPSEAL 16 Backshells

TE AMPSEAL 16 Backshells 5804d7a016fcd
Te Logo

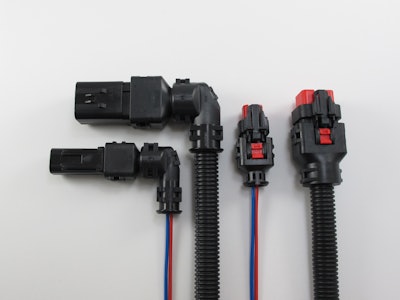

TE Connectivity (TE) Industrial & Commercial Transportation’s improved AMPSEAL 16 backshells provide strain relief, environmental protection, and deliver enhanced aesthetics for TE’s rugged AMPSEAL 16 connectors.

  • For applications in the agricultural, truck & bus, construction, mining, marine, and two-wheel industries
  • Constructed of robust thermoplastic
  • Installs easily by snapping onto AMPSEAL 16 connectors
  • Available in 180 and 90 degree versions for all AMPSEAL 16 plug and cap arrangements (2, 3, 4, 6, 8, and 12)
  • Two-piece 180 degree version channels wires directly out of the back of the connector, offering high level of protection and providing strain relief
  • Four-piece 90 degree version features an elbow that allows for 360 degree rotation, enabling wires to be routed in various angles
  • Available with either smooth wire exit or corrugated tubing style exit
  • Smooth wire exit style has slots for tie wrap which holds wires in place and provides strain relief
  • Corrugated tubing style exit backshells allow wide range of conduit sizes to nest within rear of backshell
  • Features flammability rating of UL94 V-0
  • Withstands temperatures between -40 and 125 C (-40 and 257 F)
