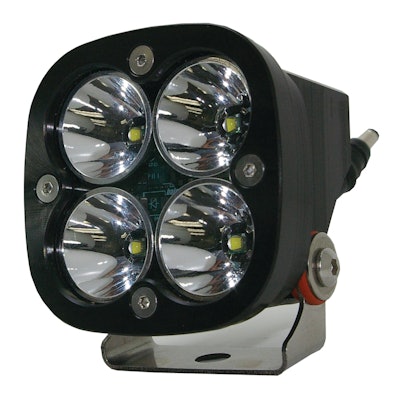

Squadron LED Vehicle Lighting

The Squadron LED light from Baja Designs offers 3,600 Lumens of light for use in a various off-road applications.

Squadronled 10327484

Baja Designs has developed its Squadron LED light to provide hours of illumination in even the most rugged of environments.

  • Provides 3,600 Lumens
  • Weighs 340 grams (0.75 lbs.) and measures 3 in. high x 3 in. wide x 2.76 in. deep
  • Uses four T6 Bin Cree XML LEDs at 5,000K
  • Features 44 watts of power draw (3.1 amps at 12V, 1.6 amps at 24V)
  • Offers 11 to 32V of power input
  • Provides 92% electronic driver efficiency
  • Features estimated LED life of 25,000 hours
  • IP68 waterproof and submersible to 3 meters
  • Available in three configurations, Spot, Driving and Wide using precision in-house designed optics
  • Active thermal management maintains LED temperature within defined operating limits
  • Thermal management automatically reduces LED power when there is inadequate airflow to maintain proper operating temperatures
  • Single Layer Solid Core Copper Circuit Boards with copper vias and high performance thermal prepreg provide thermal transfer for performance and long life
  • Billet machined housing, hard coated polycarbonate lens, stainless steel fasteners and mounts provide durability
