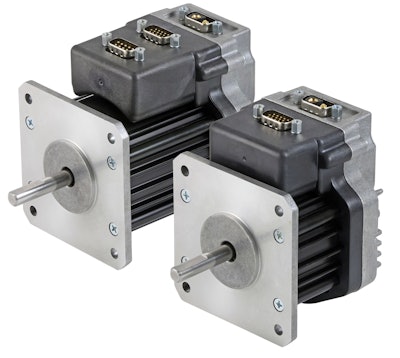

Allied Motion EnduraMax 75i Brushless Motor with Integral Drive

The EnduraMax 75i Brushless Motor with Integral Drive is capable of controlling torque, speed, and position.

Allied Motion Endura Max75i Brushless Motor

Allied Motion Technologies has introduced the EnduraMax 75i Series, a brushless DC motor with an all-digital integrated drive.

  • Includes 75 mm (3 in.) diameter
  • Capable of controlling torque, speed, and position in wide range of commercial/industrial applications
  • Features quieter operation and longer life compared to brush DC motors without need for brush maintenance
  • Offers three standard stack lengths with continuous rated power up to 370W
  • Continuous rated torque up to 1.3 Nm (190 oz.-in.)
  • Rated speed of up to 5,150 rpm
  • Choice of 12, 24, or 48V DC winding voltage suit battery-powered applications
  • Command inputs may be: ±10V DC, 4-20 mA, or via optional CANopen or Modbus port
  • Customized winding designs and voltages, shaft, and mounting options are available
  • Options include integration with Allied Motion gearboxes, stainless steel shaft, 9 or 10 mm (0.35 or 0.39 in.) diameter shaft, pre-made connectorized cables
  • Additional options include integral holding brake, sealed ball bearings, IP67 protection level
