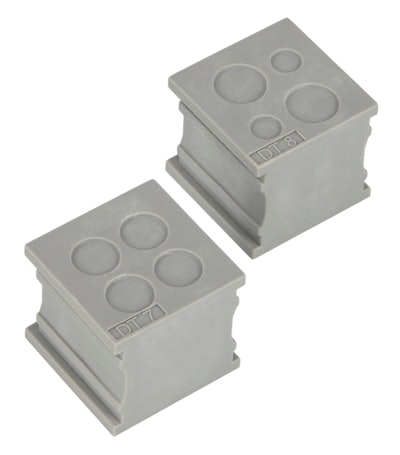

icotek DT 7 and DT 8 Cable Grommets

icotek's DT 7 and DT 8 cable grommets are suited for applications in which a large number of cables have to be routed and sealed with an IP54 (UL type 12) seal.

Icotek Dt7+dt8
Logo Icotek With Slogan

The icotek DT cable grommets can be used anywhere where a large number of electric, pneumatic or hydraulic cables have to be routed and sealed with an IP54 (UL type  12) seal.

  • DT 7 allows maximum of four cables with diameter of up to 6 mm can be routed
  • DT 8 enables two cables, each with diameter of up to 7 or 4 mm, to be routed
  • Cable density can be significantly increased
  • Compatible with split icotek cable entry frames, such as the KEL-U, KEL and KEL-FG
  • Routing of cables with and without pre-assembled connectors inside same cable entry frame can be easily combined
  • Retrofitting cables and pre-assembly of individual modules is possible
  • Available in ATEX version
