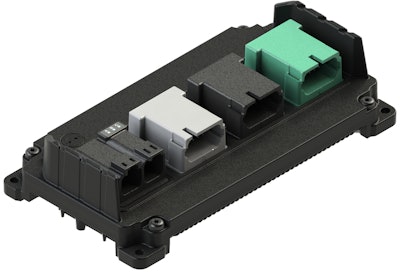

Enovation Controls uControl Series Machine Controllers

The uControl series of machine controllers continuously deliver precise proportional control in ultra-rugged environments.

March 4, 2020

Enovation Controls

Enovation Controls is unveiling the uControl series of machine controllers which are designed for use in a variety of heavy-duty equipment.

Helps OEMs achieve total machine control with extreme durability and precision fluid power and equipment performance
Continuously delivers precise proportional control in ultra-rugged environments
Features soft-gel potting and high-heat dissipating aluminum case
Fully-sealed IP67/IP69K protected enclosure
Capable of handling the heat and vibration inside an engine compartment or anywhere else on equipment
Offers flexible I/O options for a variety of equipment needs and applications
Enovation Controls' ACE software platform enables users to maximize hardware potential and create robust control and display software while increasing development efficiency
Wide operating temperature range of -40-105 C (-40-221 F)
Universal inputs and software-selectable, current-regulated PWM outputs
High-current option available
Easy to scale up or down within the hardware family
Complies to CE mark per 2014/30/EU (EN 61326-1 & EN 60945)
Conforms to ISO 13766

Fill out the form below to request more information about Enovation Controls uControl Series Machine Controllers
