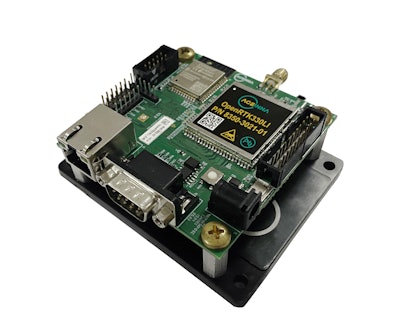

ACEINNA OpenRTK330LI EVK Development Kit

The OpenRTK330LI EVK development kit is designed to aid developers who are creating 3D machine control and guidance systems, as well as navigation systems for autonomous vehicles.

Open Rtk330 Li Evk Module Small
Aceinna Basic Logo June 2018

ACEINNA announces the general market availability of ACEINNA OpenRTK330LI EVK, a complete evaluation and development kit for the OpenRTK330LI GNSS/INS module.

  • Accelerates development and reduces time to market of custom navigation and guidance systems fusing inertial measurements and multi-band RTK/GNSS positioning
  • OpenIMU330LI Module is a compact, low cost, state-of-the-art, high performance RTK/GNSS receiver with built-in triple redundant inertial sensors
  • Provides essential hardware, firmware and development environment for engineers working on autonomous applications who need to quickly start developing algorithms and solutions
  • Enables engineers to log and visualize positioning data with centimeter precision within minutes of receiving the kit
  • Development of custom positioning and localization solutions is supported by ACEINNA Navigation Studio, and MS VS-Code by installing the free ACEINNA extension
  • Customers can use ACEINNA’s position engine or develop and implement their own in the open-source framework
  • Source code and libraries for the OpenRTK330LI module are available on GitHub.
  • Integrated Evaluation Board (EVB) provides built in RJ45 Ethernet, Micro-USB, Bluetooth, SWD/JTAG Interface, SPI, UART, CAN, SMA, power and 1PPS out connections
  • EVB simplifies access to the OpenRTK330LI module installed on the EVB, enabling quick and convenient connection to a PC and access to RTK correction data via the internet
  • Monitors all major global constellations (GPS, GLONASS, BeiDou, Galileo, QZSS) and simultaneously tracks up to 80 channels
  • Includes GNSS antenna, ST-Link/v2 debugger, 12 V Supply, USB Cable, and for customers in the continental USA, a complimentary 30-day subscription to ACEINNA OpenARC correction service
  • OpenARC is ACEINNA’s precise positioning platform that provides secure GNSS corrections powered by a dense RTK network and cloud-based architecture
