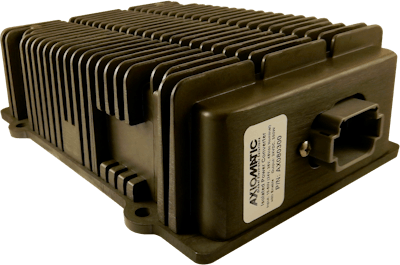

Axiomatic AX080300 Power Converter

The AX080300 power converter accepts 24, 36 or 48V DC nominal input and provides 24V DC, 350 Watts output power.

Ax080300 Full Res
Axiomatic Technologies Corporation
Axiomatic Logo 2019

The Axiomatic AX080300 power converter offers wide ranging input voltages for battery interfaces and provides 24V, 350W of power for electronic devices on rugged machines.

  • Accepts 24, 36 or 48V DC nominal input
  • Features input and output isolation as well as an enable signal
  • Provides efficiency of 93%
  • Protection includes thermal for over temperature, reverse battery, over- and under-voltage, short circuit, and overcurrent
  • Operates from -40-85 C (-40-185 F)
  • Compliant for harsh electrical and outdoor environments with protection against surges, load dump, power transients as well as exposure to dust, water, humidity, and vibration
  • Applications include use in autonomous vehicles including forklifts, off-highway and mining machine automation
