Isolated Power Converters

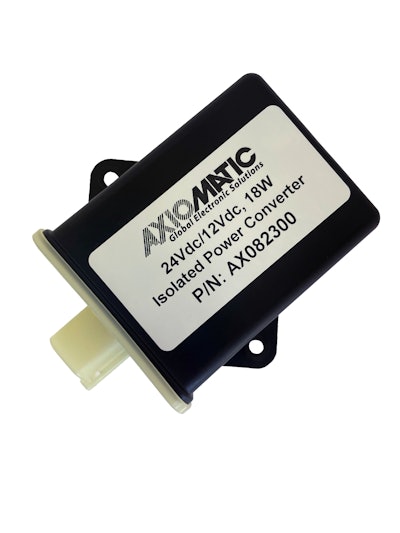

The 18-W DC/DC isolated power converters in the AX0823XX series come in three models: 9-36 VDC to 12 VDC, 12 VDC to 12 VDC, and 24 V/24 V. All units have a typical efficiency rating of 87% and are operational between -40°C to 70°C.

These IP67-rated units include reverse battery protection, over- and under-voltage protection, short-circuit and overcurrent protection, and thermal protection for overtemperature. It is also protected against a 205-VDC load dump. This power converter is suitable for applications on vehicles, such as off-highway equipment, fire trucks and municipal vehicles.
