Brigade Electronics Event Data Recorder

Brigade Electronics' Event Data Recorder includes 1080p high definition video capture for clear incident recording.

Edr
Global Black Tagline

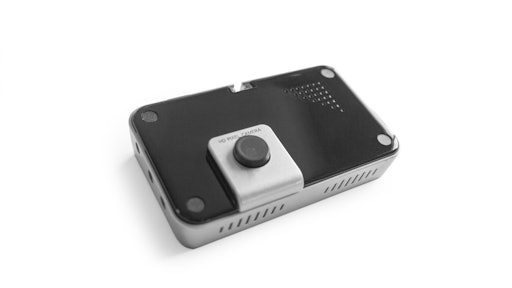

Brigade's compact, combined camera and recording system (EDR) provides evidence in the case of vehicle incidents.

  • Palm-size dash-cam
  • Easily attaches to windscreen, enabling recording of road ahead
  • Equipped with high definition video capture and three recording modes
  • Front facing recorder stores footage onto micro SD card for ease of playback via a PC
  • Optional addition of second camera and audio recording
  • 1080p high definition video capture for clear incident recording
  • 112-degree wide angle camera lens for maximum view
  • 30 frames per second for fast, smooth images
  • Four recording modes: Normal; Event; Parking; Emergency (button pressed by driver)
  • Event recording uses shock sensor which enables 10 seconds before and after an event to be recorded
  • Parking recording uses movement to engage event recording as above
  • Optional audio
  • GPS module for location and speed tracking
  • Software allows still images (JPEG) to be created with embedded date and time
  • Optional second camera allows additional view to be recorded
  • Up to 4 hours recording on supplied micro SD card (supports up to 32Gb)
  • Simultaneous normal and event recording
  • Continuous recording with automatic overwriting of oldest data
  • Viewing software allows two cameras to be viewed, alongside speed, G-force levels and location
