IEPE-Link-LXRS Wireless High-Speed Vibration Monitoring Node

The IEPE-Link-LXRS from LORD Corp. samples raw data from piezoelectric IEPE-type accelerometers and transmits it wirelessly via a 2.4 GHz radio.

Iepe Link Lordmicrostrain 11449703
Lord Microstrain Sensing Syste 11474698

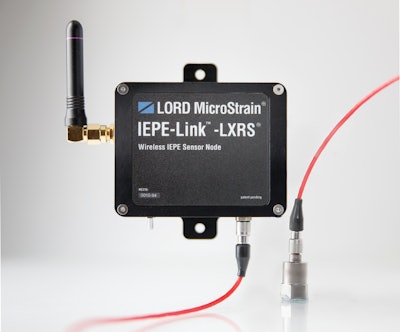

LORD Corporation MicroStrain Sensing Systems has introduced the IEPE-Link-LXRS wireless high-speed vibration monitoring node. The IEPE-Link samples raw data from industry standard piezoelectric IEPE-type accelerometers and transmits it wirelessly via a 2.4 GHz radio.

  • Capable of achieving sample rates of 104 kHz with 24-bit resolution
  • Precisely and efficiently synchronizes data collection amongst a network of wireless nodes
  • Provides programmable low-pass filtering for signal optimization
  • Typical line of sight data transmission range is up to 2 km
  • Powered by rechargeable lithium polymer batteries or an external supply to ensure increased uptime
  • Applications include vibration monitoring; condition-based monitoring of machines; health monitoring of aircraft, structures and vehicles; modal analysis; and product testing
  • Full-time series waveform data is available for advanced data analysis
  • Integrates perfectly with LORD MicroStrain’s existing line of wireless sensor nodes, including the TC-Link thermocouple node, G-Link accelerometer node, and RTD-Link RTD Sensor Node
  • Node Commander software supports configuration of the wireless nodes including discovery; initialization; radio frequency; sample rate; reading/writing to node EEPROM; calibrating node sensors; managing node batteries including sleep, wake and cycle power; and upgrading node firmware
  • Software enables easy programming of each node on the scalable network for burst mode sampling, and automatically configures radio communication to maximize the aggregate sample rate
  • Includes WSDA gateways which use proprietary beaconing protocols to synchronize precision timekeepers within each sensor node in the network
  • WSDA also coordinates data collection from all sensor nodes
  • Optional SensorCloud-enabled, wireless sensor data aggregators support autonomous web-based data visualization, alerts and reports
