Lord 3DM-GX5 Family of Inertial Sensors

Lord's 3DM-GX5 family of inertial sensors provide automatic compensation for noise and drift fora greater degree of precision.

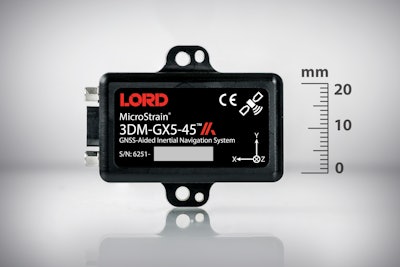

Gx5 45 Big 5891fe1a461ba
Parker Lord Logo

LORD Sensing MicroStrain has expanded its portfolio of sensors for the industrial off-highway market, including agriculture, mining, and construction, with the introduction of the 3DM-­GX5 family of inertial sensors.

  • Upgrades include improved performance through in-situ heading calibration
  • Automatic magnetometer calibration and anomaly rejection eliminate need for field calibration
  • Fully calibrated, temperature-compensated, and mathematically-aligned to an orthogonal coordinate system for highly accurate outputs
  • Provides automatic compensation for noise and drift, allowing a greater degree of precision
  • MIP communications protocol enables easy data acquisition and evaluation with higher reliability in communication and control
  • Withstands high variations in temperature and shock
  • Application examples include auto-steer, planting seeds to a specific depth, contouring land, and also autonomous grade control on digging jobs
  • Easily integrates into customer systems, allowing quick drop-in replacement into existing applications
  • Shares same miniature footprint and API as LORD’s earlier inertial line and has same mounting, connector and software as well as high reliability
  • Family includes GX5-45 GNSS/INS sensor which allows greater degree of precision by moving through terrain in 3D when GNSS signal alone is not accurate enough
