tecsis Type F9205 Twistlock Sensors

The tecsis type F9205 Twistlock sensors are available as a complete system consisting of Twistlock pin, sensor element and signal amplifier.

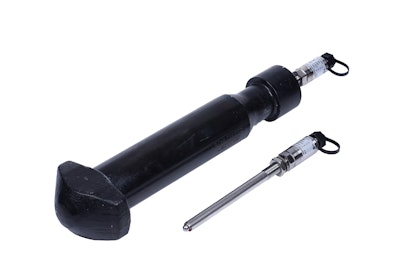

F9205 Twistlock System

tecsis can provide the necessary weighing technology to meet the SOLAS directive, which came into force in July 2016, with its type F9205 Twistlock sensors.

  • Can be provided pre-assembled, calibrated and installed in a Twistlock
  • Overall system consists of Twistlock pin, sensor element and signal amplifier
  • Can be fitted to any of current spreader models
  • Retrofitting is also possibly
  • Alternatively, the individual sensor can also be purchased without a Twistlock pin
  • Integrated CAN interface, on which protocol SAE J1939 or CANopen is implemented
  • Supplied with across-the-board temperature compensation
  • Features accuracy of 0.5%
  • Tested by the Natural and Medical Sciences Institute (NMi) and certified in accordance with OIML R60 Class D175
  • Offers high long-term stability and high resistance to overload situations
  • Withstands shock loads of up to 100 g
  • Complies with protection class IP67
  • Can be used in harsh environmental conditions such as port logistics
  • Suited for all applications in which containers are lifted using a spreader, providing an ideal facility for SOLAS-compliant container weighing
