RHEINTACHO FP Speed Sensors

The RHEINTACHO FP speed sensors withstand temperatures of -40-160 C (-40-320 F).

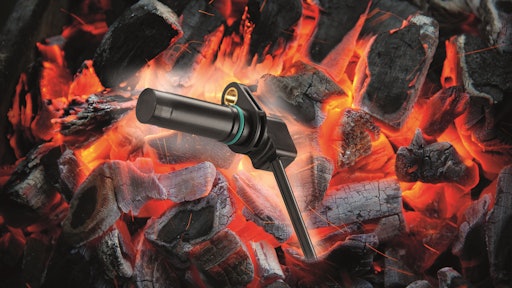

Pic Fp Speedd Sensor

The FP Series of speed sensors from RHEINTACHO are especially suitable for use in environments with extreme temperature loads, e.g. encapsulated motors or installation situations with limited heat exchange.

  • For rotational speed and direction detection
  • Withstands extreme temperature loads, fromĀ -40-160 C (-40-320 F)
  • High-tech plastic sensor with 90-degree phase shift
  • Insertion depths of 35 and 45 mm (1.4-1.8 in.)
  • Protection class IP65
  • Standstill detection (from 0 Hz)
  • High temperature resistance
  • Offers reliable signal detection already from zero speed.
  • Electronics based on 2-channel Differential-Hall principle
  • Suitable, for applications such as electric drives and forklift trucks
