Balluff Pressure-Rated Inductive Sensors with AMP Superseal 1.5 Series Connectors

Balluff's Pressure-Rated Inductive Sensors with pre-installed AMP Superseal 1.5 series connectors provide feedback and position monitoring in hydraulic cylinders and valves.

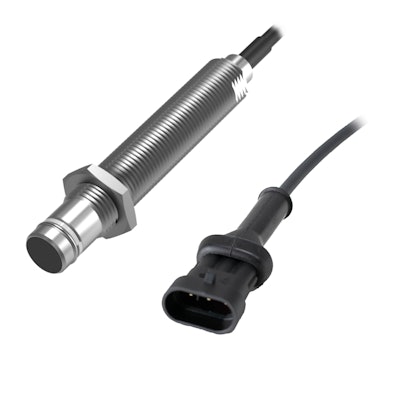

Bhs0095 With Amp Superseal Connector

Balluff’s pressure-rated inductive sensors are designed for use in hydraulic cylinders and valves to provide end-of-stroke feedback and valve spool position monitoring.

  • Pre-installed with AMP Superseal 1.5 mm (0.06 in.) automotive connector
  • Offered with variety of discrete outputs and numerous housing styles and connections to meet needs of various applications
  • Utilizes non-contact switching technology
  • Features stainless steel housings
  • Working pressures to 500 bar (7,251.9 psi)
  • Designed to provide reliable feedback under harsh conditions of off-highway applications
  • Simplifies and reduces installation costs associated with proportional transducers requiring deep drilling of cylinder rod
  • Provides increased protection over external mechanical switching solutions
  • 3-pin connectors feature fast push connection and locking clip to easily and reliably customize pigtail to vehicle
  • IP67 watertight, outdoor reliable
