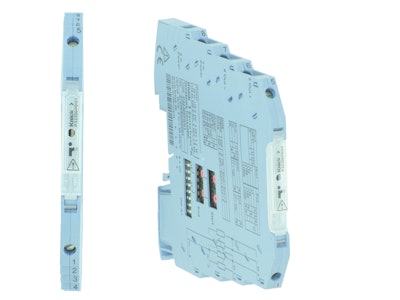

Knick USA PolyTrans P 32000 Universal Sensor Transmitters

The PolyTrans P 32000 universal sensor transmitters from Knick USA has an infrared interface and automatically recognizes the signal outputs of temperature, force and strain sensors.

KnickUSA Universal Transmitter 55568887a0bc9

Knick USA has announced the North American market introduction of its PolyTrans P 32000 universal sensor transmitters.

  • Provides easy operation and high-reliability
  • Offers added functionality within a single, cost-effective, user-friendly unit
  • Features unique infrared interface
  • Can automatically recognize the signal outputs of any 2-, 3- and 4-wire temperature, force and strain sensors, resistors, potentiometers, resistive sensors, and similar sensing technologies
  • Recognizes standard thermocouple signals, with either internal or external reference junction compensation, without the need for further adjustments
  • Compact design facilitates its ease of installation within space-constrained environments
  • Can be flexibly adapted to individual measurement tasks using DIP and rotary encoder switches or an IrDA interface
  • Broad ranged power supply covers all common voltages from 24 to 230V and ensures maximum safety, even when operating with unstable power grids
  • Three-port isolation with protective separation up to 300V AC/DC, according to EN 61140, ensures optimal protection of personnel and equipment, as well as unaltered measurement signal transmission
  • Available with SIL 2 approvals (per IEC 61508) to meet more stringent functional safety requirements
